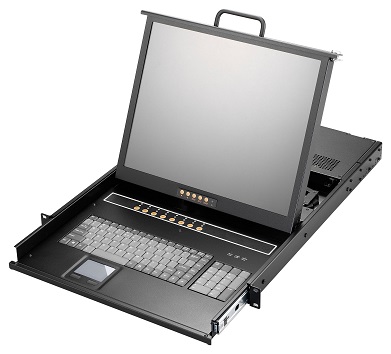

AMK808-HDMI 8 port
HDMI
KVM
1U, 17"
or 19" LCD Console with 8-port HDMI KVM Switch |
|
|
|
Features
-
Meets EIA310c & IEC-3
specifications
-
1U, Single Slide Rail, built-in 17" or 19" Rack LCD Console
with 8-port HDMI KVM switch
-
Includes a key-locking mechanism
to prevent unauthorized access
-
Industrial keyboard with
touch pad
-
Provides up to 130-degree monitor
rotation for viewing flexibility
-
Built-in rail self-locking device
-
Tempered glass protect LCD screen
-
No software required- Easy PC
selection via Front push buttons, Hot keys
|
|
 |
|
|
|
Specifications
|
Model No |
AMK808-17HB |
AMK808-19HB |
|
Drawer Design |
1U, Single Slide Rail
self-locking device for 19" rackmount |
|
Weight |
12 kgs |
|
Dimension |
442.4 x 44 x 590 mm (W x H x D) |
|
Power Supply |
Built-in 60W, 90~264VAC Auto
Switch, Operating Temp.: -20~70°C |
|
Construction |
Heavy-duty steel |
|
Keyboard |
Industrial keyboard with
touchpad
Option KB: CH,
FR,
GR,
IT,
JP,
KR,
PT,
RU,
SP,
UK,
US
|
|
Physical Security |
Key locking Mechanism |
|
Protection |
Tempered glass protect LCD
screen |
|
Power Consumption |
3 watts stand-by, 25 watts
in-use |
|
Operating Temp. |
0 ~ 50°C ( 32 ~ 122°F) |
|
Storage Temp. |
-20 ~ 60°C ( -4 ~ 140°F) |
|
Humidity |
0 ~ 90% RH |
|
Approvals |
CE, FCC class A, RoHS |
|
LCD Display |
|
Size |
17" |
19" |
|
Resolution |
1280x
1024 |
1280x
1024 |
|
|
|
KVM Switch |
8-port
HDMI KVM |
|
Port Selection |
8x Front Push Buttons,
Hotkey |
|
Connectors |
KVM Port |
Video: 8x
HDMI
KB/MS: 8x USB A Type
|
|
Power |
1x 3-prong AC Socket |
|
Switch |
Port Selection |
8x Front Push Buttons |
|
LCD control |
4x LCD Adjust push button |
|
LED |
Online |
8 |
|
Select |
8 |
|
KVM Cable |
8x
HDMI cables,
8x USB cables |
KVM Switch
-
8-port rack mountable HDMI KVM, USB KB/MS
-
8x HDMI video connectors, and 8x USB type A
Female KB/MS connectors.
-
Support Windows, DOS, Netware, Unix, Linux,
IMAC, Power MAC and Sun Micro systems with USB
-
Hot plug- add or remove connected computer without powering off the KVM switch or computer
-
No software required.
Easy computer selection via Front Push Button , Hot Key.
|
Ordering Information
|
Product No. |
Description |
|
AMK808-17HBUS |
1U, Single Rail, 17",
1280x 1024, 8 ports HDMI KVM switch, 8 x HDMI/USB cables |
|
AMK808-19HBUS |
1U, Single Rail, 19",
1280x 1024, 8 ports HDMI KVM switch, 8 x HDMI/USB cables |
|
Packing List
|
1 * AMK Rack LCD KVM Console |
2 * Brackets |
|
1 * Power Cord |
1 * User's manual |
|
8 * 1.8m
HDMI cables |
1 * Screw Pack |
|
8 * 1.8m USB
cables |
1 * Foam with Box |
|
|
|
