EOL |
|

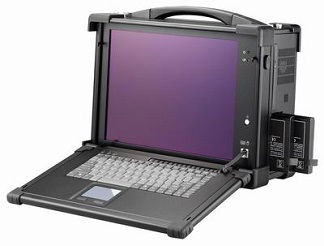

ARP970-B
15" LCD, Core i7/ i5 Processors, Multi-slot Portable Battery System |
|
  |
  |
|
Features
-
All-in-one design rugged
portable computer
-
Rugged Aluminum Construction
with shock absorbing rubber corners
-
Compact Size Lightweight Design
-
Built-in 15" TFT LCD display,
1024x 768 with anti-reflection tempered glass
-
Intel QM77 (Gen3), support Sandy
bridge (Gen2) and Ivy bridge (Gen3) core i7/ i5/ i3
Processors.
-
2x 95W Li-ion battery packs,
up to 4 hours battery life
-
Mini-ITX MB, Intel Core i5-2510E
or i7-2710QE Processors
-
2PCI, 1PCI-E
(x16) full-length
expansion slots, (Option: 3PCI-E (x16, x1, x1) slots,
Option: 3PCI-E (x8, x8, x1) slots)
-
Built-in 500GB HDD, Support 2x
2.5" removable SATA
-
Dual Gigabit Ethernet Support
-
Industrial
multi-language Keyboard with touchpad
-
The keyboard is
integrated with the portable computer to protect the screen
and easy to carry
-
Large handle
provide convenience transportation of the portable computer with
comfort and ease
-
Trolley case to manage portable
PC with ease
|
Specifications
|
Model No |
ARP970-B
(Battery Packs) |
|
CPU |
Intel Core i5-2510E, 3M Cache,
2.50GHz Processors
(Option: Intel Core i7-2710QE,
6M Cache, 2.10 GHz) |
|
Chipset |
Intel QM77 Express Chipset |
|
Slot |
2 PCI, 1PCI-E
(x16) full-length
expansion slots
Option: 3 PCI-E (x16,
x1, x1)
full-length expansion slots
Option: 3 PCI-E (x8,
x8, x1)
full-length expansion slots
|
|
Display |
15" TFT LCD Monitor, 1024x 768
Anti-reflection tempered
strengthen glass |
|
VGA |
LVDS,
3rd
Generation Intel Core i7 / i5 / i3 QC/DC mobile processor
integrated Gfx |
|
Memory |
2x 4GB DDR3 |
|
HDD |
1x 500GB 2.5", 7200 rpm SATA
HDD, Support 2x 2.5" removable SATA |
|

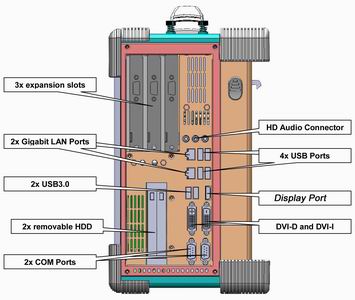

Interfaces |
2x DB9 for
COM1, COM2, DVI-D + DVI-I connector, 2x USB 3.0 connector,
4x USB 2.0 connector
DP
connector, 2x Gbit LAN RJ-45, RCA Jack 3x1 for HD audio
|
|
LAN |
Inte®
82579LM
Gigabit LAN PHY
Inte®
82583V Gigabit LAN |
|
Audio |
Intel®
QM77 built-in high definition audio controller with
Realtek ALC892 for 7.1 CH audio |
|
KB/MS |
Industrial
multi-languages Keyboard/ touchpad
Keyboard layout:
CH,
FR,
GR,
JP,
KR,
RU,
UK,
US |
|
Power Supply |
2x 95W Li-ION battery Packs
(Hot-Swappable)
100W AC Adapter, up to 4 hours
battery life |
|
Speaker |
Built-in amplified 2x 3W speakers |
|
Construction |
Rugged Aluminum Construction
with shock absorbing rubber corners |
|
Dimension |
412x 330x 185 mm (Wx Hx D) |
|
Weight |
9 kgs |
|
Trolley Case |
Padded
trolley case with wheels |
|
Environmental Factors
|
|
Operating |
Non-Operating |
|
Temperature |
0°C~50°C |
-20°C~60°C |
|
Relative Humidity |
10%~90% |
10%~95% |
|
Shock |
10g, 11ms, half-Sine
|
30g, 11ms, half-Sine |
|
Vibration |
10-500Hz (0.4 Grms)
|
10-500Hz (1.12 Grms) |
|
Approval |
CE, FCC, RoHS |

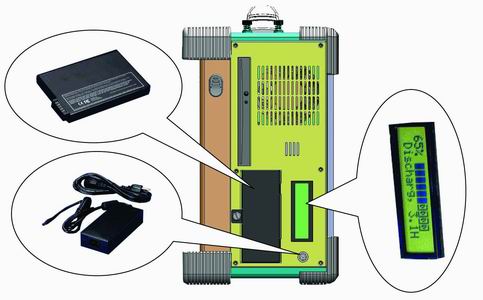

ARP970-B (Battery Packs)

Battery Packs:
-
2x 95W Li-ION battery Packs (Hot swappable)
-
100W AC adapter for AC Operation and recharging
-
LCD panel for battery capacity: The LCD display shows battery
array fuel gauge, power, current, charge/ discharge state, time
to fully charged, time to empty.
-
The battery charge time is about 2 hours if a single battery is
attached and 3.5 hours if two battery packs are attached
Ordering Information
|
Product No. |
Description |
|
ARP970-B15USC |
15" LCD, i5-2510E CPU, 2x 4G
RAM, 2PCI, PCI-E (x16), 500G HDD, Battery packs,
trolley
case |
|
ARP970-B15USD |
15" LCD, i5-2510E CPU, 2x 4G
RAM, 3 PCI-E (x16, x1, x1), 500G HDD, Battery packs,
trolley case |
|
ARP970-B15USG |
15" LCD, i5-2510E CPU, 2x 4G
RAM, 3 PCI-E (x8, x8, x1), 500G HDD, Battery packs,
trolley case |
|
Keyboard layout:
CH, FR, GR, KR, RU, SP, UK, US |
|
Packing List
|
1 * ARP Slim Rugged Portable
Computer |
1 * MB Manual & Driver |
|
1 * Carrying case with wheels |
1 * Anti-Static Bag |
|
1 * Power Cord |
1 * Foam with Box |
Applications: Military,
Industrial automation, Digital TV test & analysis, Mobile Computing,
Outdoor Computers, video conferencing,
E-learning, Speech Technologies, Telemedicine, Portable Workstation,
Multimedia, Mission Critical Computing.
|
|
