ARP945
15" LCD, Core 2 Duo Processors, Rugged
Industrial Portable computer system |
|
|
|
|
-
All-in-one design rugged portable
computer
-
Rugged Aluminum Construction with
shock absorbing rubber corners
-
Compact Size Lightweight Design
-
Built-in 15" TFT LCD display,
1024x 768 with anti-reflection tempered glass
-
250W Power Supply
-
Mini-ITX MB, Intel Core 2 Duo
T7500 Processors
-
Industrial Keyboard multi-language
with touchpad
-
3x PCI-E (8x) full-length
expansion slots, Option: 3x PCI-X or 2x
PCI, 1x PCI-E (16x)
-
Built-in 500GB HDD, Support 2x
2.5" removable SATA
-
Dual Gigabit Ethernet Support, 4x SATAII
-
Carrying case to manage portable
PC with ease
|
 |
 |
|
3x PCI-e (8x) |
3x PCI-X |
|
   |
|
|
ARP945 is designed for harsh environment
operations; the LCD screen of the ARP945 is guarded with a specially
treated anti-glare tempered glass for added protection. Every ARP945 is
constructed with easy access to its expansion ports for immediate system
upgrade or maintenance. Functional practicality combined with the simple
and polished design, the ARP945 with its extra-rugged construction to
sustain bumps and impacted blows, is the most cost-effective, durable
and efficient portable solution for your mission critical applications.
Applications: Military,
Industrial automation, Digital TV test & analysis, Mobile Computing,
Outdoor Computers, video conferencing,
E-learning, Speech
Technologies, Telemedicine, Portable Workstation, Multimedia,
Mission Critical Computing |
Specifications
|
Model No |
ARP945 (250W
PSU) |
|
CPU |
Intel Core 2 Duo T7500 (2.2GHz)
Processors |
|
Chipset |
Intel Gm45 Chipset + ICH9M |
|
Slot |
3x Full-Size PCI-E (x8) slots
Option: 3x full-size PCI-X slots
Option: 2x PCI, 1x PCI-E (x16)
slots |
|
Display |
15" TFT LCD Monitor, 1024x 768
Anti-reflection tempered
strengthen glass |
|
VGA |
LVDS,
GM45 chipset
built-in |
|
Memory |
2x 2GB Memory |
|
HDD |
1x 500GB 2.5", 7200 rpm SATA
HDD, Support 2x 2.5" removable SATA |
|
CDROM |
1x Slim DVD-RW |
|
Interfaces |
PS/2 keyboard
and mouse, 4x USB, Dual RJ-45 Gigabit LAN
2x COM Port, VGA CRT, audio (3x2) |
|
LAN |
Dual Intel
Gigabit LAN |
|
Audio |
ICH9M built-in
audio HD audio w/ Realtek ALC888 codec |
|
KB/MS |
Industrial
multi-languages Keyboard/ touchpad
Keyboard layout:
CH, FR,
GR,
JP,
KR,
RU,
UK,
US |
|
Power Supply |
250W, 100~240 VAC, Auto switch |
|
Speaker |
Built-in amplified 2x 3W speakers |
|
Construction |
Rugged Aluminum Construction
with shock absorbing rubber corners |
|
Dimension |
412x 330x 184 mm (Wx Hx D) |
|
Weight |
9 kgs |
|
Carrying Case |
Padded carrying case with wheels |
|
Environmental Factors
|
|
Operating |
Non-Operating |
|
Temperature |
0°C~50°C |
-20°C~60°C |
|
Relative Humidity |
10%~90% |
10%~95% |
|
Shock |
10g, 11ms, half-Sine
|
30g, 11ms, half-Sine |
|
Vibration |
10-500Hz (0.4 Grms)
|
10-500Hz (1.12 Grms) |
|
Approval |
CE, FCC, RoHS |
Ordering Information
|
Product No. |
Description |
|
ARP945-X15USA |
15" LCD, T7500 CPU, 2x 2G RAM, 3
PCI-E (x8) slots, 500G HDD, DVD-RW, 250W PSU,
Carrying case |
|
ARP945-X15USB |
15" LCD, T7500 CPU, 2x 2G RAM, 3
PCI-X slots, 500G HDD, DVD-RW, 250W PSU,
Carrying
case |
|
ARP945-P15USC |
15" LCD, T7500 CPU, 2x 2G RAM,
2PCI, 1 PCI-E(x16) slots, 500G HDD, DVD-RW, 250W PSU,
Carrying
case |
|
Keyboard layout:
CH, FR, GR, KR, RU, SP, UK, US |
|
Options |
|
LCD Display |
|
|
● |
15" TFT LCD display, 1024x
768 resolution |
|
|
15.4" TFT
LCD display, 1920x 1200 resolution |
|
Power Supply |
|
|
|
ARP945:
250W, 100~240 VAC, Auto switch |
|
|
ARP945-B:
2x 95W Li-ION battery Packs
(Hot-Swappable) |
|
Processor |
|
 |
● |
Intel Core 2 Duo T7500 (4M
Cache, 2.20 GHz, 800 MHz FSB) Processors |
|
|
Intel Core 2 Duo T9400 (6M
Cache, 2.53 GHz, 1066 MHz FSB) Processors |
|
Expansion slot |
|
 |
● |
3x Full-Size PCI-E (8x) Slots |
|
|
3x Full-Size PCI-X slots |
|
|
2x PCI, 1x PCI-E (16x) full-size |
|

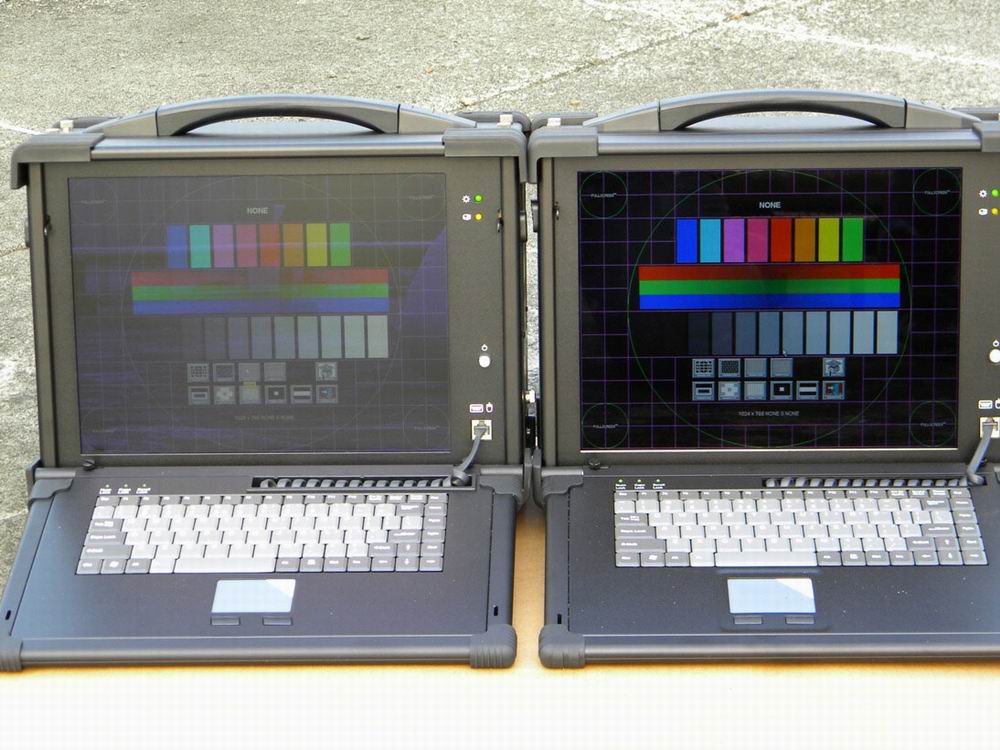

Touch Screen |
|
 |
● |
None |
|
|
Touch Screen |
|
Sunlight Readable |
|
 |
● |
None |
|
|
Sunlight Readable |
|
Packing List
|
1 * ARP Slim Rugged Portable
Computer |
1 * MB Manual & Driver |
|
1 * Carrying case with wheels |
1 * Anti-Static Bag |
|
1 * Power Cord |
1 * Foam with Box |
Applications: Military,
Industrial automation, Digital TV test & analysis, Mobile Computing,
Outdoor Computers, video conferencing,
E-learning, Speech Technologies, Telemedicine, Portable Workstation,
Multimedia, Mission Critical Computing.
ARP945-15W
15.4", 1920x 1200 LCD Display
● Rugged Aluminum Construction with
shock absorbing rubber corners
● Built-in 15.4” LCD display with
tempered glass, 1920x 1200, 262K colors, 170 nits brightness
|
|
|
