         Ariesys >>  Products >> Portable Computer >> ARP945
ARP945            15" LCD, Core 2 Duo Processors, Rugged Industrial Portable computer system
.



Features

  • All-in-one design rugged portable computer

  • Rugged Aluminum Construction with shock absorbing rubber corners

  • Compact Size Lightweight Design

  • Built-in 15" TFT LCD display, 1024x 768 with tempered glass

  • 250W Power Supply

  • Mini-ITX MB, Intel Core 2 Duo T7500 Processors

  • Industrial Keyboard multi-language with touchpad

  • 3x PCI-E (8x) full-length expansion slots, Option: 3x PCI-X or 2x PCI, 1x PCI-E (16x)

  • Built-in 500GB HDD, Support 2x 2.5" removable SATA

  • Dual Gigabit Ethernet Support, 4x SATAII

  • Carrying case to manage portable PC with ease

Industrial Portable Computer Rugged Portable Computer Manufacturer
3x PCI-e (8x) 3x PCI-X

ARP945 is designed for harsh environment operations; the LCD screen of the ARP945 is guarded with a specially treated anti-glare tempered glass for added protection. Every ARP945 is constructed with easy access to its expansion ports for immediate system upgrade or maintenance. Functional practicality combined with the simple and polished design, the ARP945 with its extra-rugged construction to sustain bumps and impacted blows, is the most cost-effective, durable and efficient portable solution for your mission critical applications.



Applications: Military, Industrial automation, Digital TV test & analysis, Mobile Computing, Outdoor Computers, video conferencing,

                    E-learning, Speech Technologies, Telemedicine, Portable Workstation, Multimedia, Mission Critical Computing

產品規格
產品型號 ARP945
處理器 CPU Intel Core 2 Duo T7500 (2.2GHz) Processors
主機板晶片 Chipset

Intel Gm45 Chipset + ICH9M

擴充插槽

3x Full-Size PCI-E (x8) slots

Option: 3x full-size PCI-X slots

Option: 2x PCI, 1x PCI-E (x16) slots

螢幕

15" TFT LCD Monitor, 1024x 768, 250 nits brightness, 16.2M, MTBF: 50,000 hours

Anti-reflection tempered strengthen glass

VGA LVDS, GM45 chipset built-in
記憶體 2x 2GB Memory
硬碟 1x 500GB 2.5", 7200 rpm SATA HDD, Support 2x 2.5" removable SATA
光碟機 1x Slim DVD-RW
Interfaces PS/2 keyboard and mouse, 4x USB, Dual RJ-45 Gigabit LAN
2x COM Port, VGA CRT, audio (3x2)
LAN Dual Intel Gigabit LAN
Audio ICH9M built-in audio HD audio w/ Realtek ALC888 codec
鍵盤/滑鼠

87-key industrial multi-languages Keyboard/ touchpad

Keyboard layout: CH, FR, GR, JP, KR, RU, UK, US

電源供應器 250W, 100~240 VAC, Auto switch
Speaker Built-in amplified 2x 3W speakers
結構 Rugged Aluminum Construction with shock absorbing rubber corners
尺寸 412x 305x 184 mm (Wx Hx D)
重量 9 kgs
移動式手提拉包 Padded carrying case with wheels
Environmental Factors
  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Shock

10g, 11ms, half-Sine

30g, 11ms, half-Sine
Vibration

10-500Hz (0.4 Grms)

10-500Hz (1.12 Grms)
Approval CE, FCC, RoHS
Ordering Information
Product No. Description
ARP945-X15USA 15" LCD, T7500 CPU, 2x 2G RAM, 3 PCI-E (x8) slots, 500G HDD, DVD-RW, 250W PSU, Carrying case
ARP945-X15USB 15" LCD, T7500 CPU, 2x 2G RAM, 3 PCI-X slots, 500G HDD, DVD-RW, 250W PSU, Carrying case
ARP945-P15USC 15" LCD, T7500 CPU, 2x 2G RAM, 2PCI, 1 PCI-E(x16) slots, 500G HDD, DVD-RW, 250W PSU, Carrying case

Keyboard layout: CH, FR, GR, KR, RU, SP, UK, US

Options
LCD Display



15" TFT LCD display, 1024x 768 resolution
  15.4" TFT LCD display, 1920x 1200 resolution
Power Supply
    ARP945: 250W, 100~240 VAC, Auto switch
  ARP945-B: 2x 95W Li-ION battery Packs (Hot-Swappable)
Processor

Intel Core 2 Duo T7500 (4M Cache, 2.20 GHz, 800 MHz FSB) Processors



Intel Core 2 Duo T9400 (6M Cache, 2.53 GHz, 1066 MHz FSB) Processors
Expansion slot

3x Full-Size PCI-E (8x) Slots
  3x Full-Size PCI-X slots
  2x PCI, 1x PCI-E (16x) full-size
Touch Screen

None
  Touch Screen
Sunlight Readable

None
  Sunlight Readable
Packing List
1 * ARP Slim Rugged Portable Computer 1 * MB Manual & Driver
1 * Carrying case with wheels 1 * Anti-Static Bag
1 * Power Cord 1 * Foam with Box


Applications: Military, Industrial automation, Digital TV test & analysis, Mobile Computing, Outdoor Computers, video conferencing,

                      E-learning, Speech Technologies, Telemedicine, Portable Workstation, Multimedia, Mission Critical Computing.

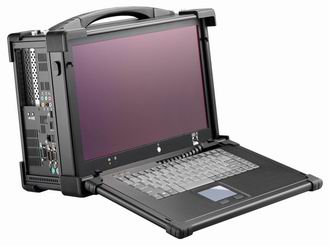

ARP945-15W      15.4", 1920x 1200 LCD Display



● Rugged Aluminum Construction with shock absorbing rubber corners

● Built-in 15.4” LCD display with tempered glass, 1920x 1200, 262K colors, 170 nits brightness
