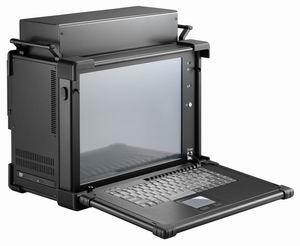

ARX314
3U, 14-slot
PXI cPCI Portable
Instrument with 15" Touch screen display |
|
 |
|
|
-
Designed for portable instrument
applications
-
Accepts both 3U PXI and CompactPCI
Modules
-
3U, 14-slot Portable Instrument
-
Built-in 15” LCD display with
touch screen, 1024x 768, 16.2M, 250 nits brightness
-
One system slot and 13 PXI
peripheral slots
-
Aluminum Alloy Housing design
-
Integrated keyboard and touchpad
-
2U 600W power supply
-
Built-in slim DVD-ROM device
-
Carrying case to manage portable
PC with ease
|
|
|
Specifications
|
Model No |
ARX314 |
|
Backplane |
3U-size, 14-slot PXI backplane
Compliant with PXI
specifications Rev2.2
Accepts both PXI and CompactPCI
3U module |
|
Accessible Slots |
1 system slot & 13 Peripheral
slots |
|
Display |
15" TFT LCD Monitor with touch
screen, 1024x 768, 250 nits brightness, 16.2M
|
|
Drive bay |
Slim DVD-ROM |
|
KB/MS |
Integrated keyboard and
touchpad, RJ45 connector |
|
Construction |
Aluminum Construction with shock
absorbing rubber corners |
|
Power Supply |
2U 600W power supply |
|
Dimension |
434Wx 372Hx 228D mm |
|
Weight |
12 kgs |
|
Carrying Case |
Padded carrying case with wheels |
|
Environmental Factors
|
|
Operating |
Non-Operating |
|
Temperature |
0°C~50°C |
-20°C~60°C |
|
Relative Humidity |
20%~90% |
10%~95% |
|
Approval |
CE, FCC, RoHS |
Ordering Information
|
Product No. |
Description |
|
ARX314-15US |
15" LCD with touch screen, 3U,
14-slot Portable Computer, 2U 600W PSU, slim
DVD-ROM,
Carrying
case |
|
|
|
|
